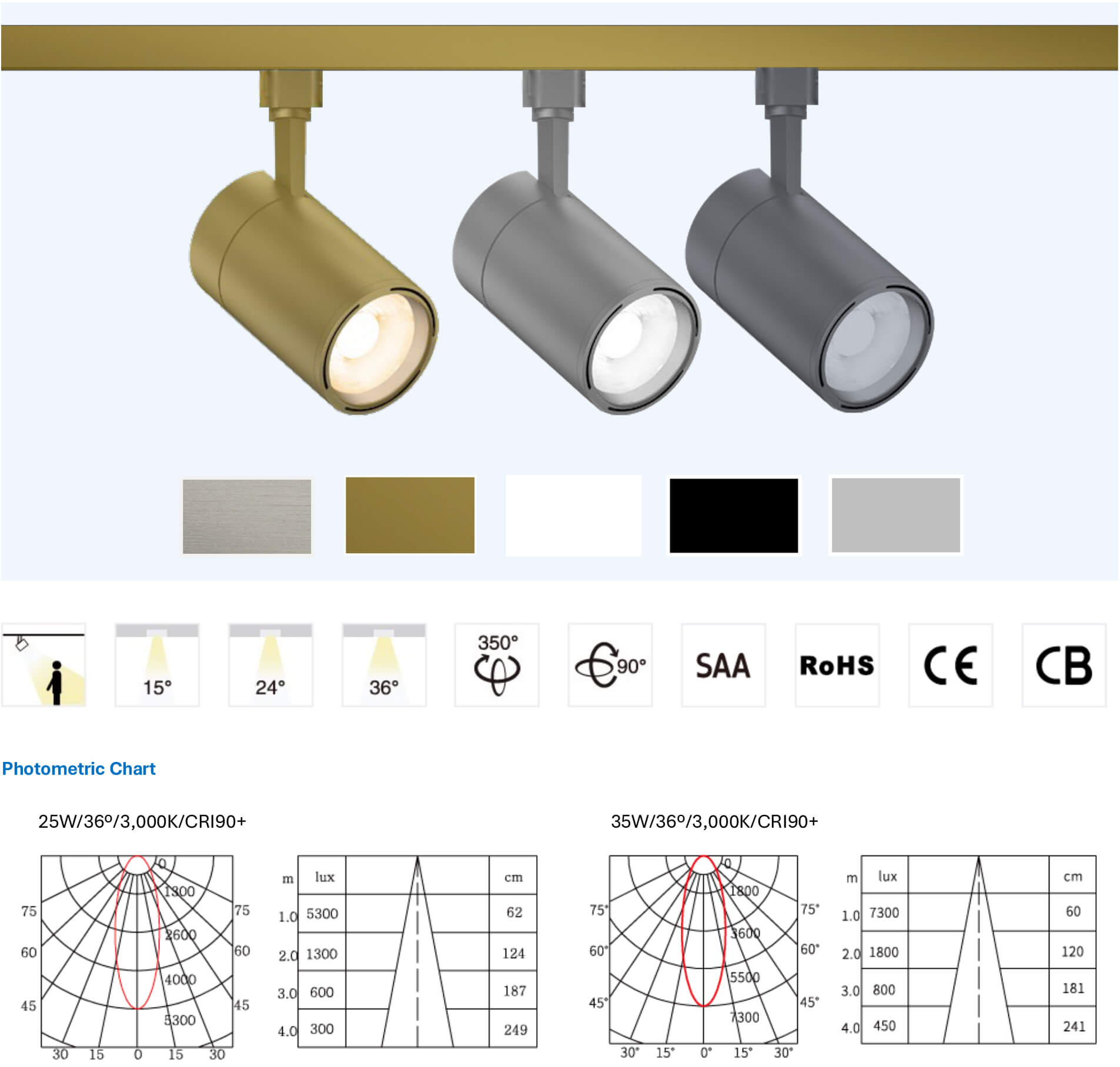

NLC-GTL-TL58A track spot light, one of the Newlec track light specialized in fashion retail market. With internal driver and adopts Citizen® chips with high quality LED source, CRI90/97 optional. Secondary optics with lens make more uniform light. Integrated die-cast aluminum and thermal convection design provide excellent heat dissipation. Especially for the surface finish, we are flexible to customize Gold, Nickel and other decorative finishes to project demands which provides more options for designers.
- BodyMaterial for Housing, Aluminum, Optics Material, PC(Polycarbonate)
- LED SourcesLight source options: SMD LEDs. CRI: 90| CCT: 3000K, 4000K. Other CRI and CCToptions
- DriversSupplied with non-dimmable integrated driver. Dimming OptionsTRIAC. 220-240V50/60Hz.
- Available in 15W/25W/35W, Efficiency up to 110 lm/w,
- Surface finishing, black/grey/white in default, and golden/nickel available as an option,
- Input Voltage:AC200-240V,50/60HZ,Color temperature3,000K/4,000K/5,000K available,
- certifications and compliance, SAA/CE/CB/ROHS

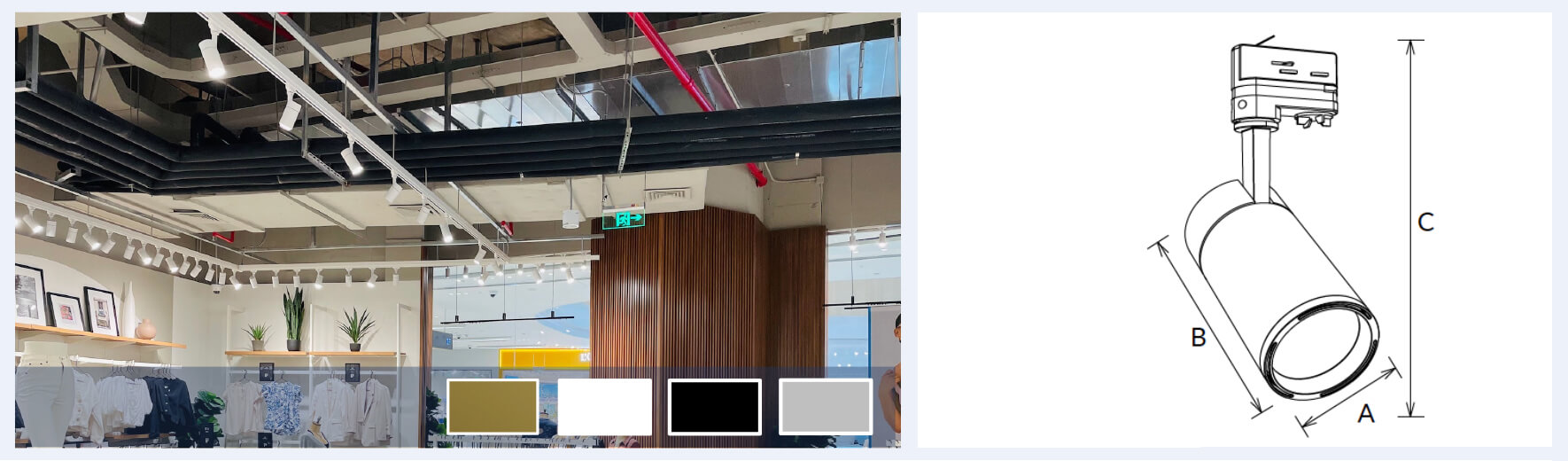

| Code | Power | Efficacy(Ra70) | Lm Flux(±5%) | Color Temperature | Size(LxWxhmm) |
|---|---|---|---|---|---|
| NLC-GTL-TL58-15W | 15W | 110lm/w | 1,650lm | 3,000/4,000K | ⍉65x131 |
| NLC-GTL-TL58-25W | 25W | 110lm/w | 2,750lm | 3,000/4,000K | ⍉80x152 |
| NLC-GTL-TL58-35W | 35W | 110lm/w | 3,850lm | 3,000/4,000K | ⍉100x167 |
NLC-GTL-TL58-15W
15W
110lm/w
1,650lm
3,000/4,000K
⍉65x131
NLC-GTL-TL58-25W
25W
110lm/w
2,750lm
3,000/4,000K
⍉80x152
NLC-GTL-TL58-35W
35W
110lm/w
3,850lm
3,000/4,000K
⍉100x167
