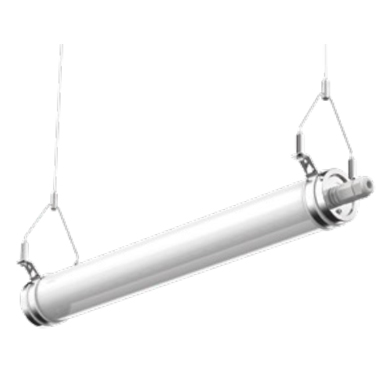

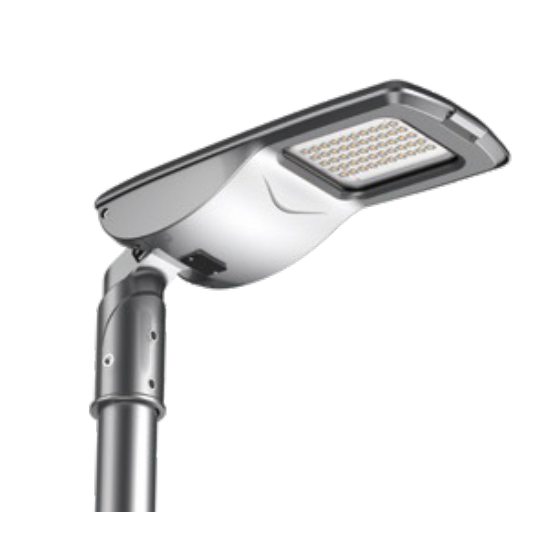

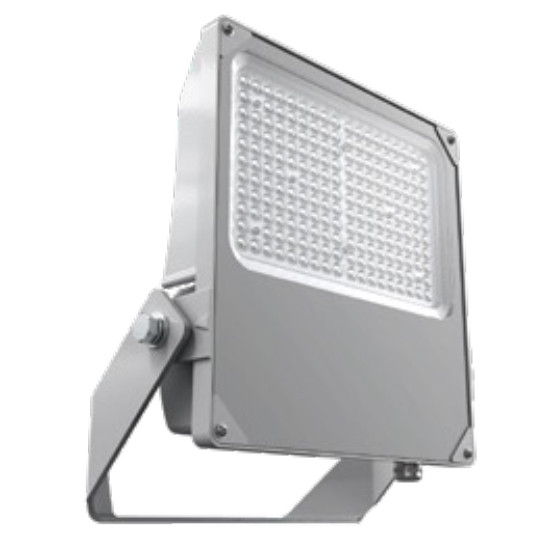

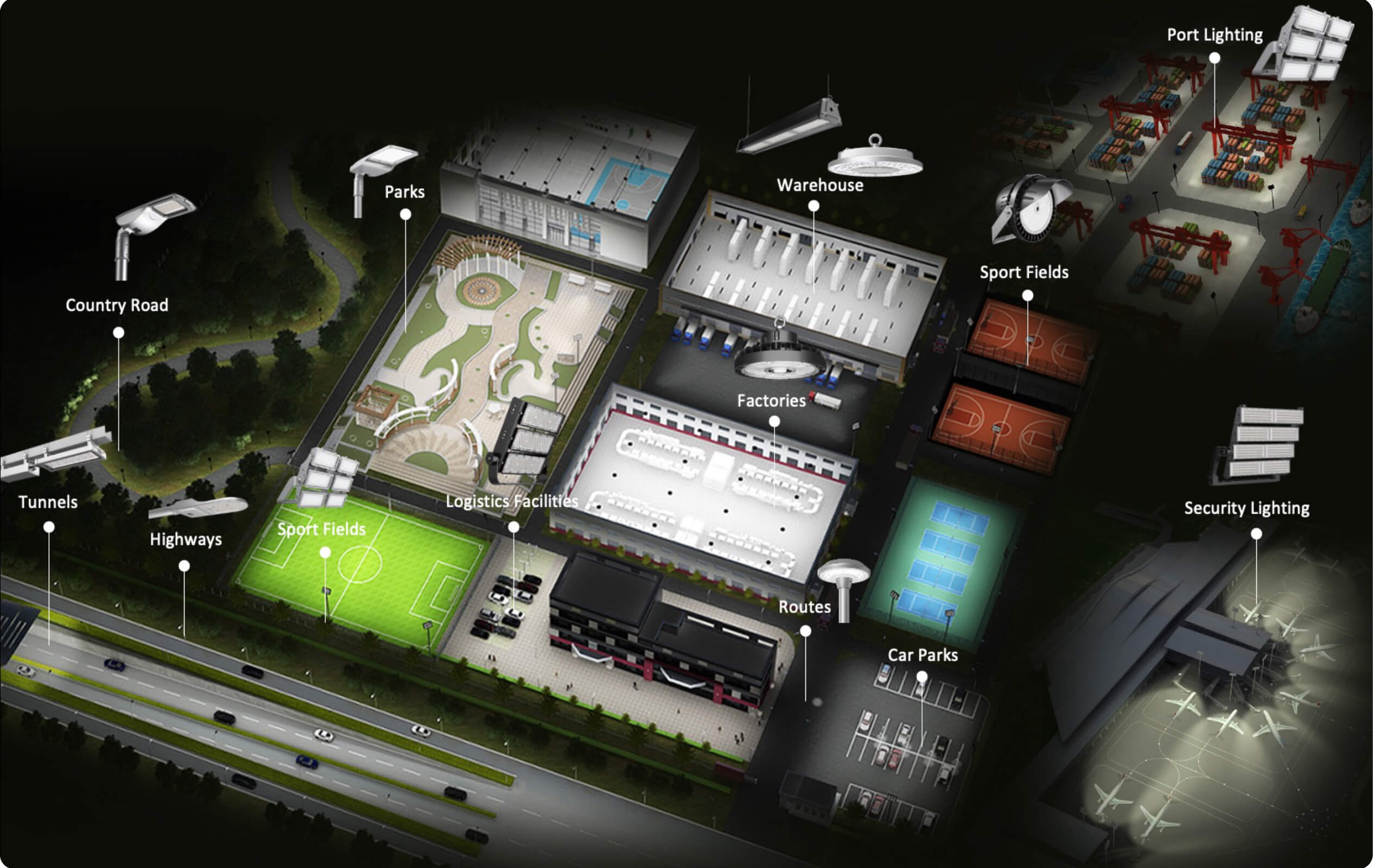

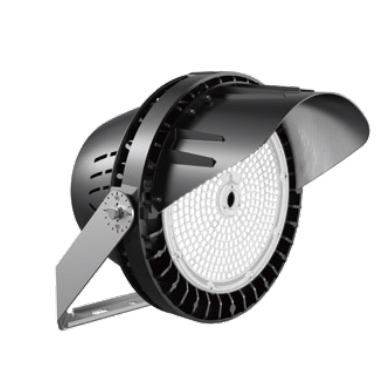

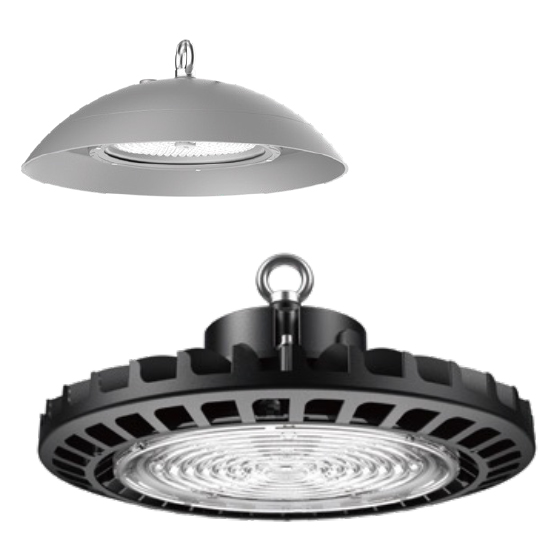

- Industrial & Exterior Lighting

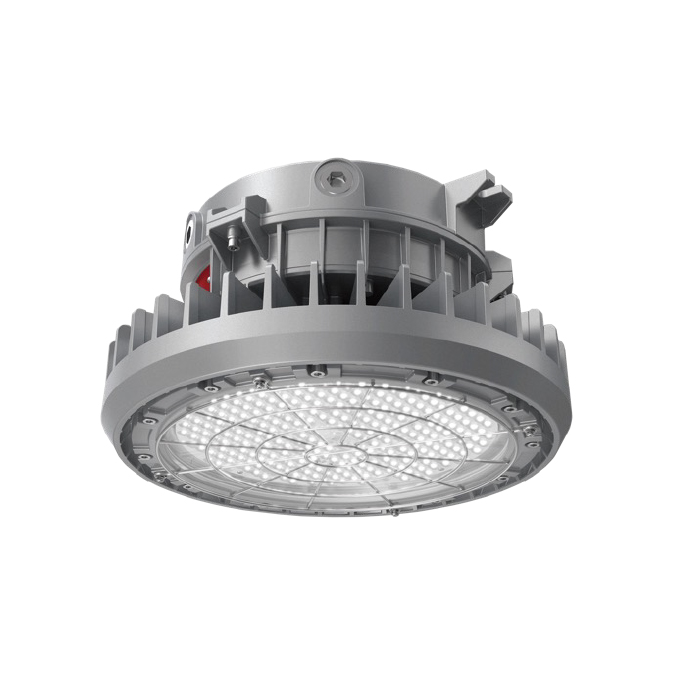

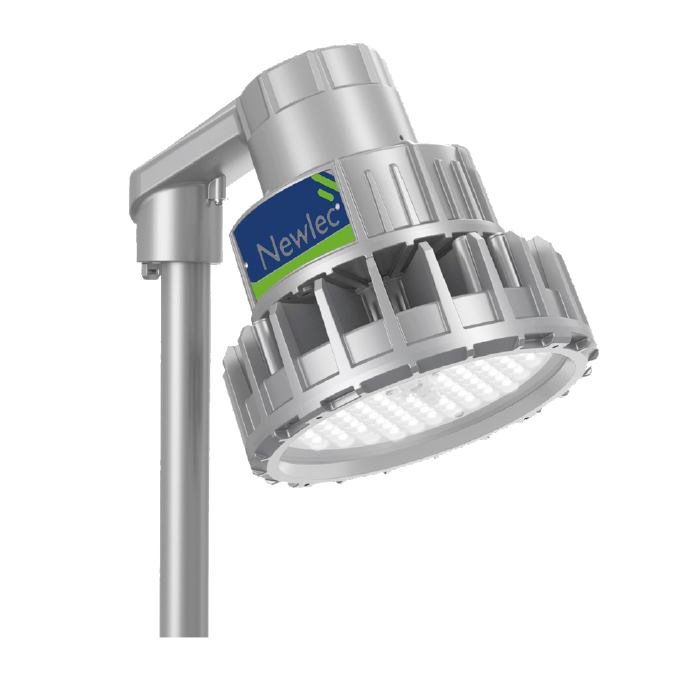

- Explosion-Proof Lighting

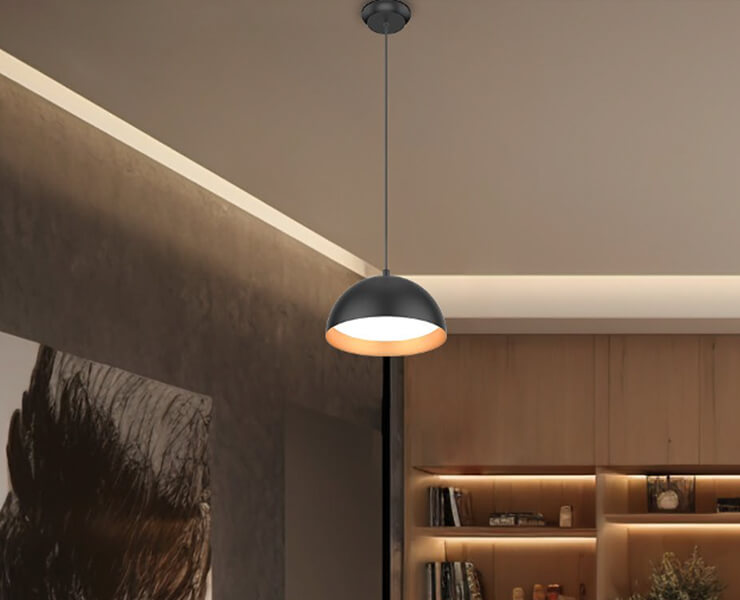

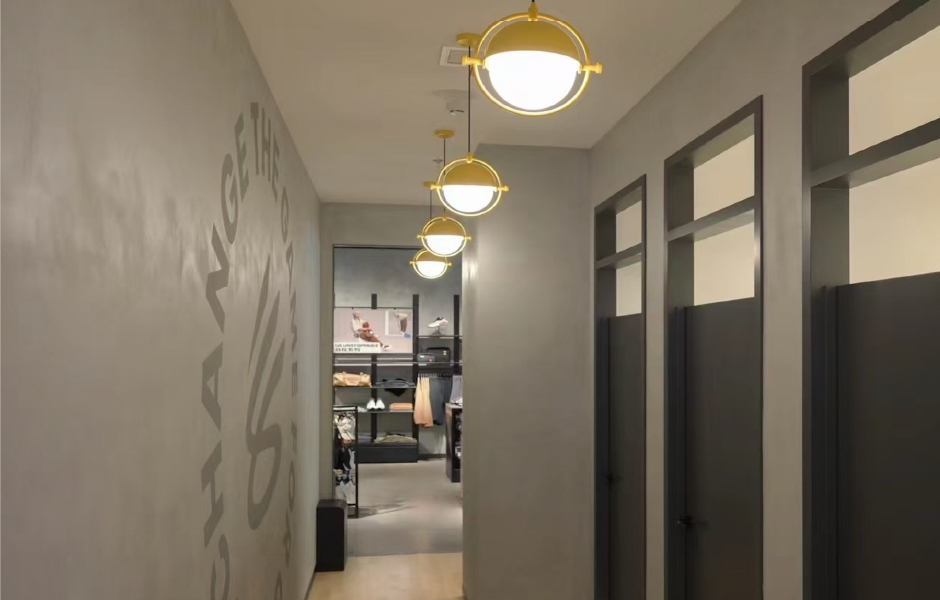

- Decorative Lighting

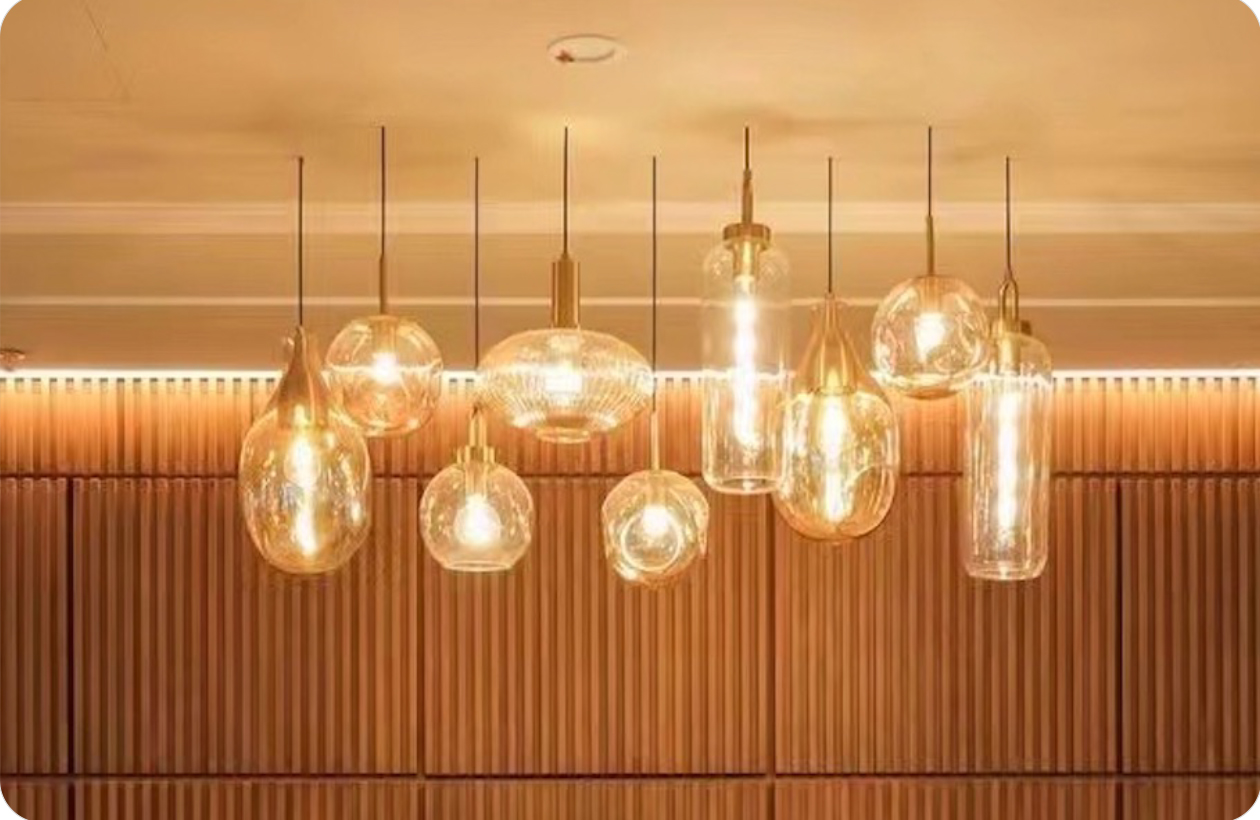

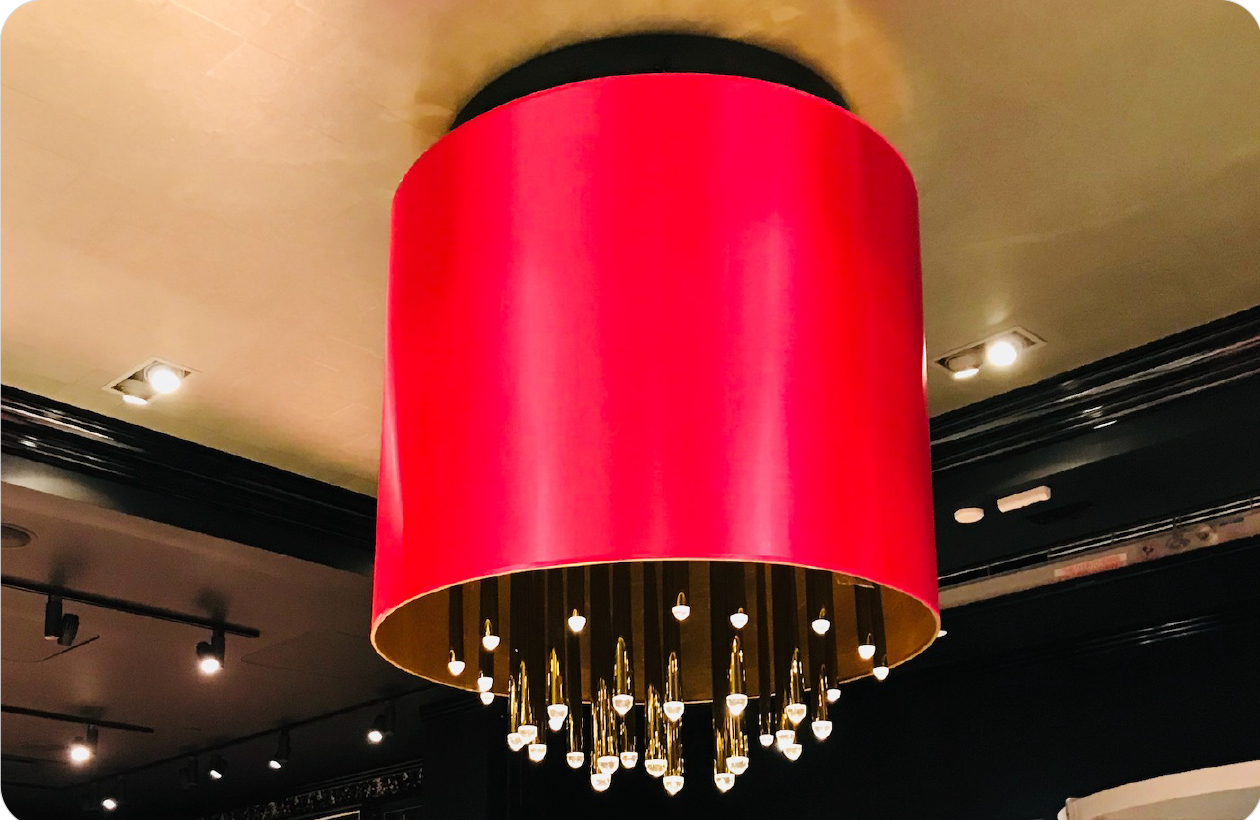

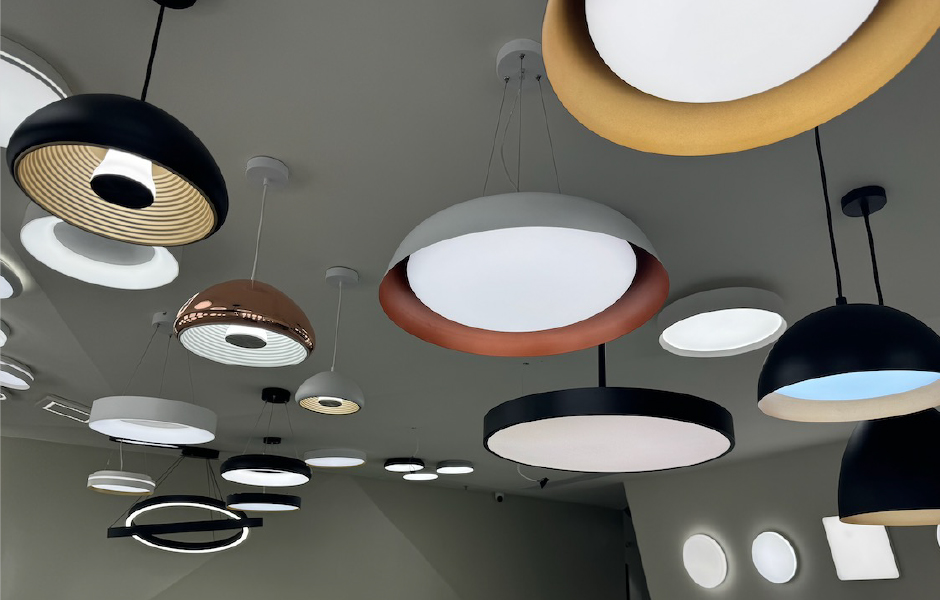

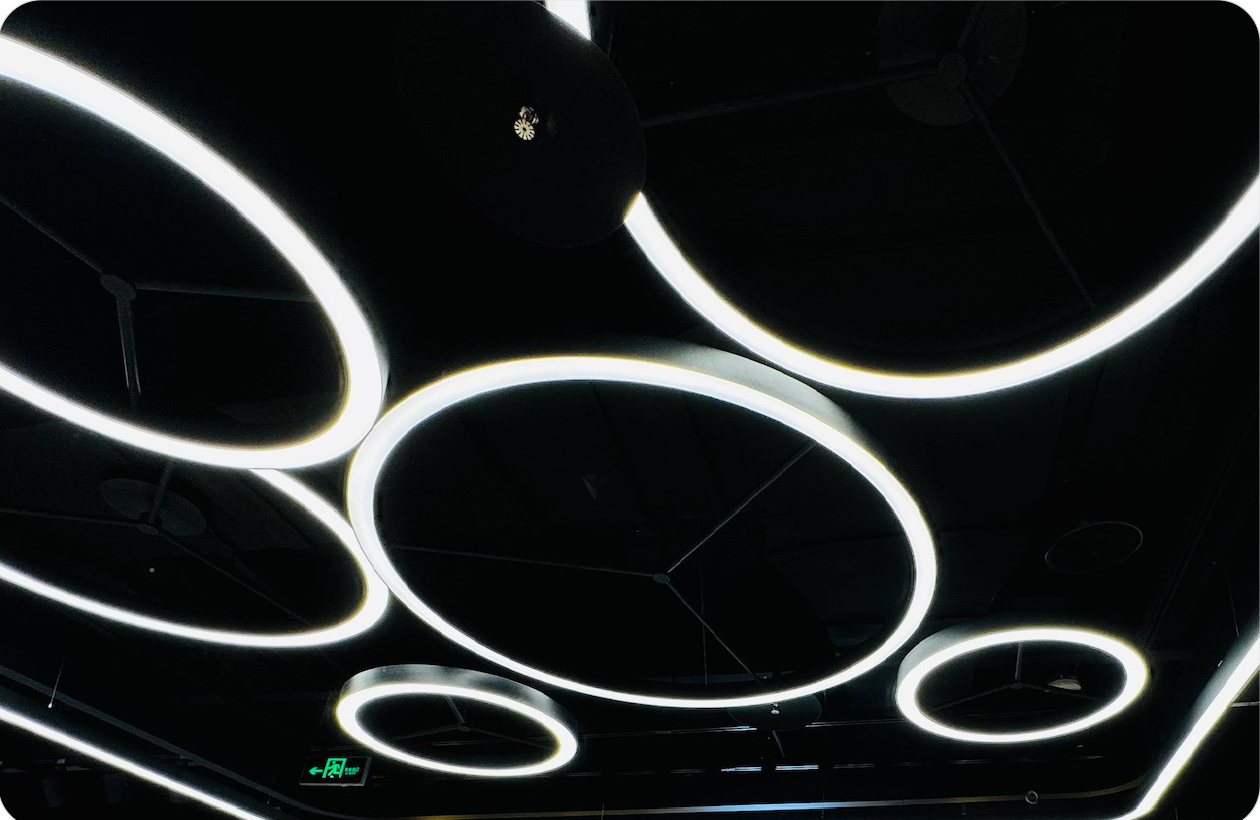

For decorative lighting series, we are mainly working on the customization services as customer requested. With the concept from our customer, we will be providing a comprehensive design supporting including the product shop drawing, installation proposals, samples swatch of surface finishing and textures, etc.
Product/Interior Lighting/Recessed Downlight

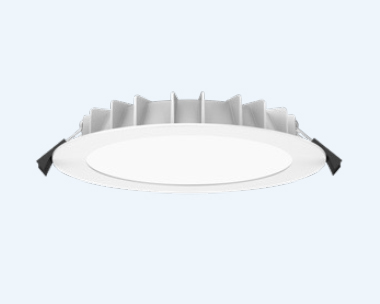

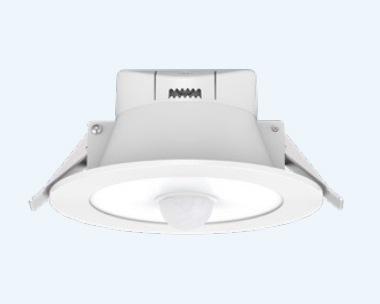

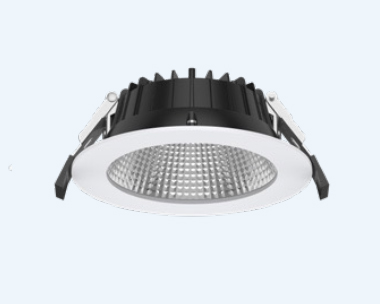

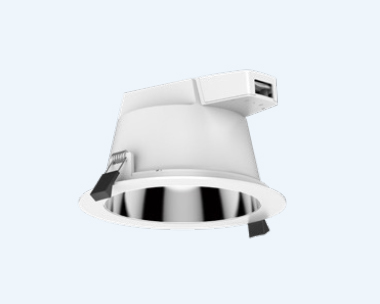

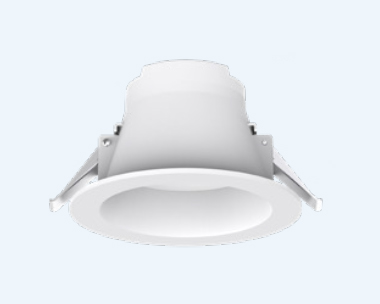

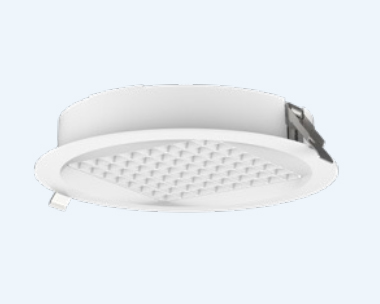

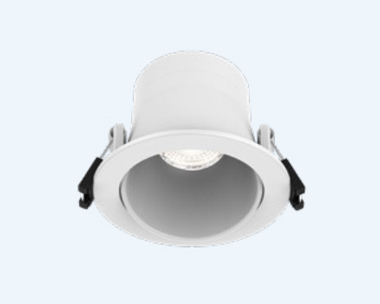

Product/Interior Lighting/Recessed Downlight/NLC-DL210

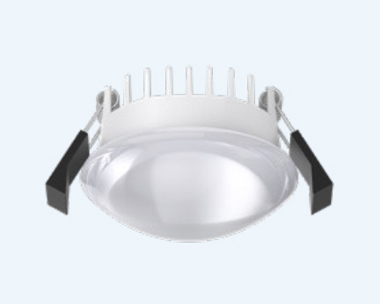

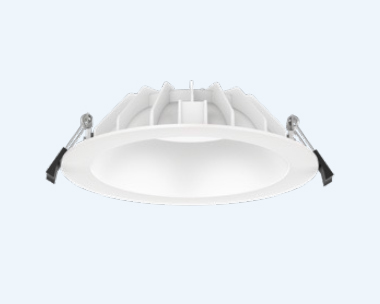

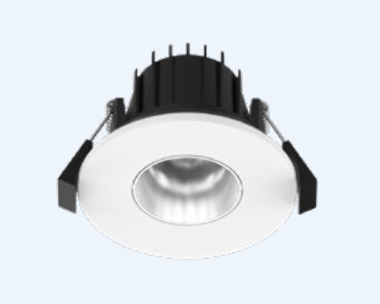

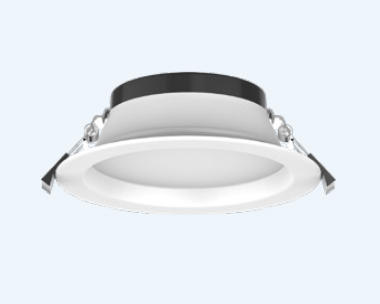

LED DOWNIGHT ｜ 简灯系列

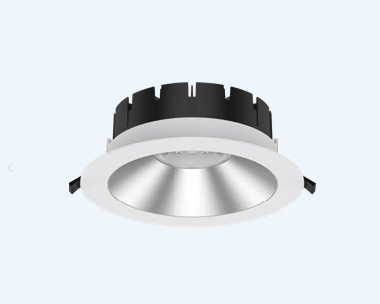

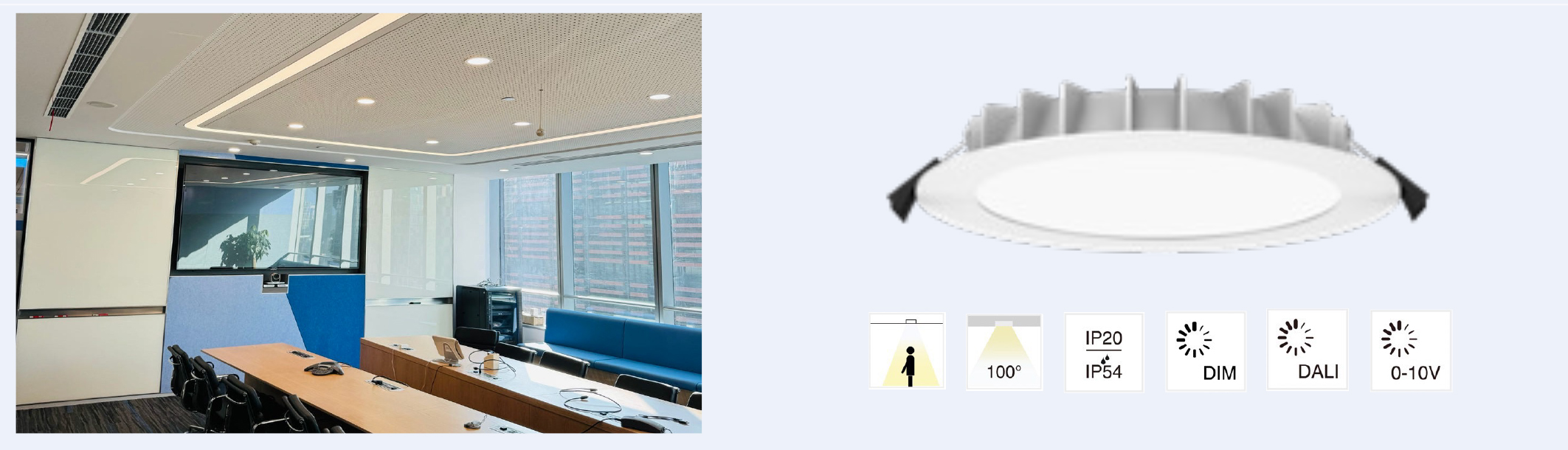

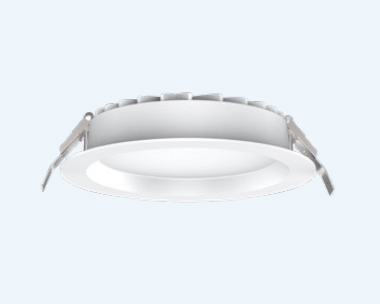

NLC DL210 LED downlight is with super slim design, external driver, adopting high lumen SMD LED with uniform light. Interchangeable CCTwith slide switch is available. IP54 waterprooffor front side.
- BodyRecessed luminaire with round mounting trim in cast aluminum with springs for trim installation on a ceiling
- LED SourcesLight source options: SMD LEDs. CRI: 90| CCT: 3000K, 4000K. Other CRI and CCToptions
- DriversSupplied with non-dimmable remote driver. Dimming Options:0-10V Dim, DALI. 220-240V50/60Hz.
- FinishPowder coat in black or white color. Other colors to be optional
Item Options
| Index | Item Code | Watt | Size | Cut-Out(mm) | Lumen(±5%) | Net Weight(KG) |
|---|---|---|---|---|---|---|
| 1 | NLC-DL210-3-10W | 10W | ⍉110x30 | ⍉90-95 | 1,000lm | 0.25 |
| 2 | NLC-DL210-3-13W | 13W | ⍉110x30 | ⍉90-95 | 1,320lm | 0.25 |
| 3 | NLC-DL210-4-13W | 13W | ⍉145x30 | ⍉120-130 | 1,370lm | 0.35 |
| 4 | NLC-DL210-4-18W | 18W | ⍉145x30 | ⍉120-130 | 1,980lm | 0.35 |
| 5 | NLC-DL210-6-18W | 18W | ⍉190x30 | ⍉160-170 | 1,930ml | 0.50 |
| 6 | NLC-DL210-6-25W | 25W | ⍉190x30 | ⍉160-170 | 2,750ml | 0.50 |
| 7 | NLC-DL210-8-25W | 25W | ⍉225x34 | ⍉200-210 | 2,750ml | 0.65 |
| 8 | NLC-DL210-8-35W | 35W | ⍉225x34 | ⍉200-210 | 3,900ml | 0.65 |
| 9 | NLC-DL210-8-42W | 42W | ⍉225x34 | ⍉200-210 | 4,750ml | 0.65 |
Application
Appliction areas:retail,shopping centers,window display.
Product/Interior Lighting/Track Light

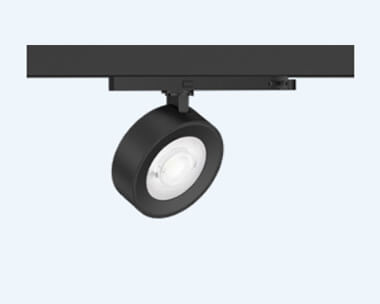

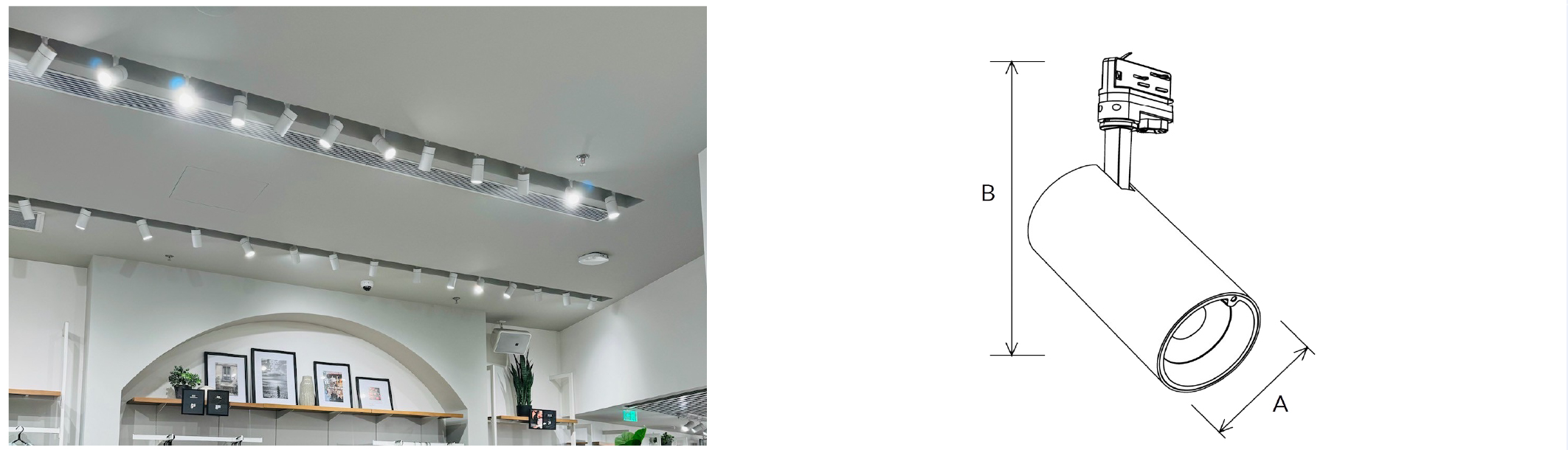

Product/Interior Lighting/Tracklight/NLC-DL210

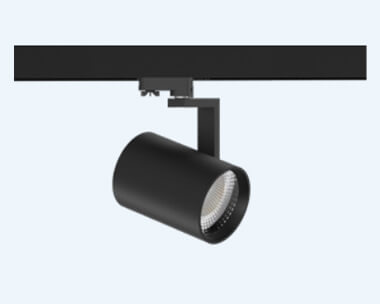

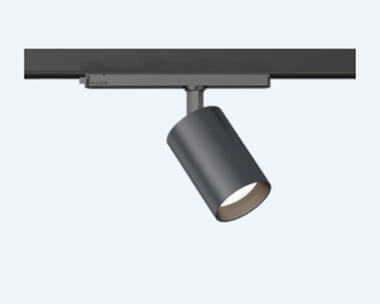

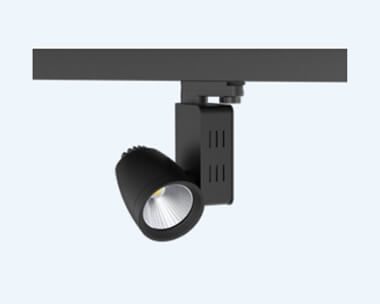

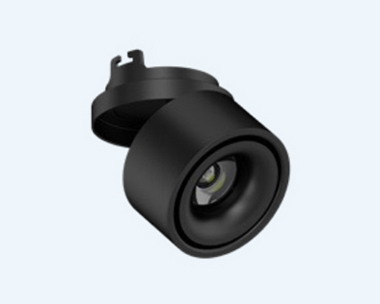

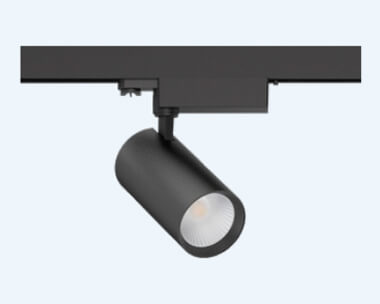

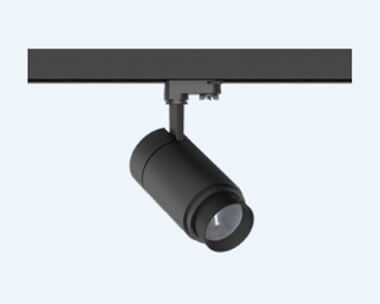

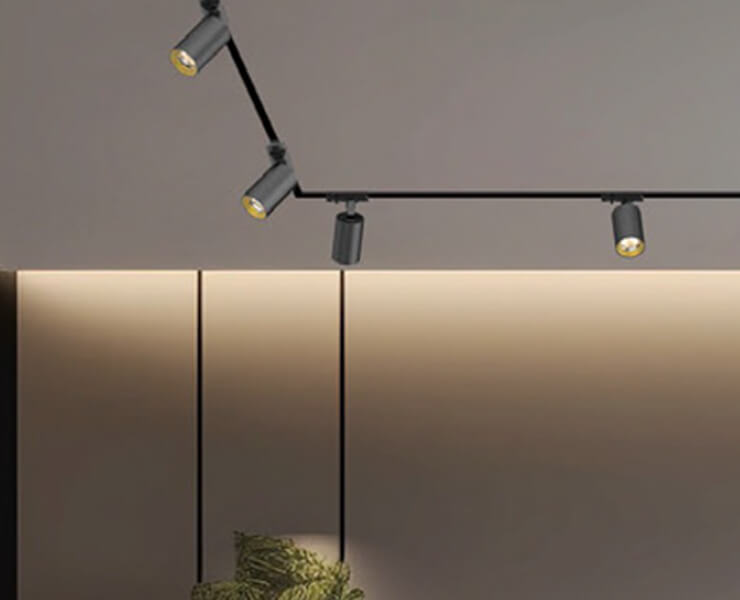

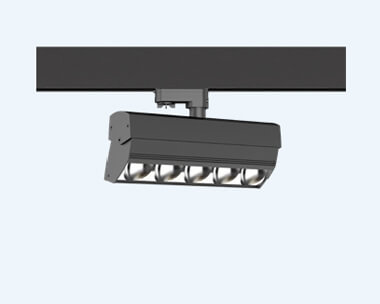

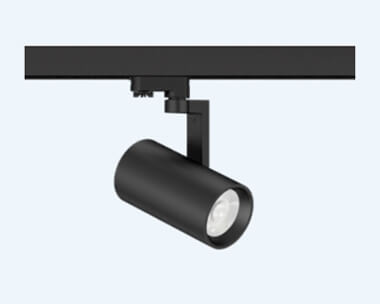

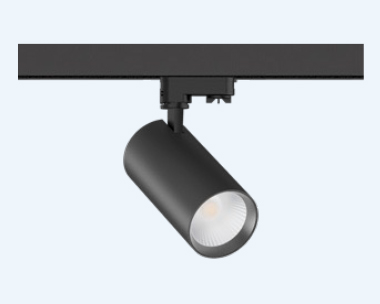

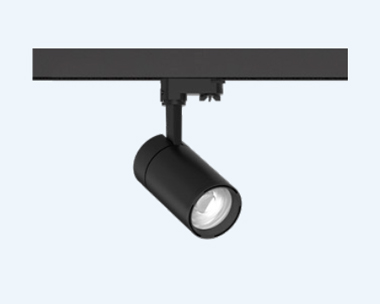

LED TRACK LIGHT ｜ 轨道灯系列

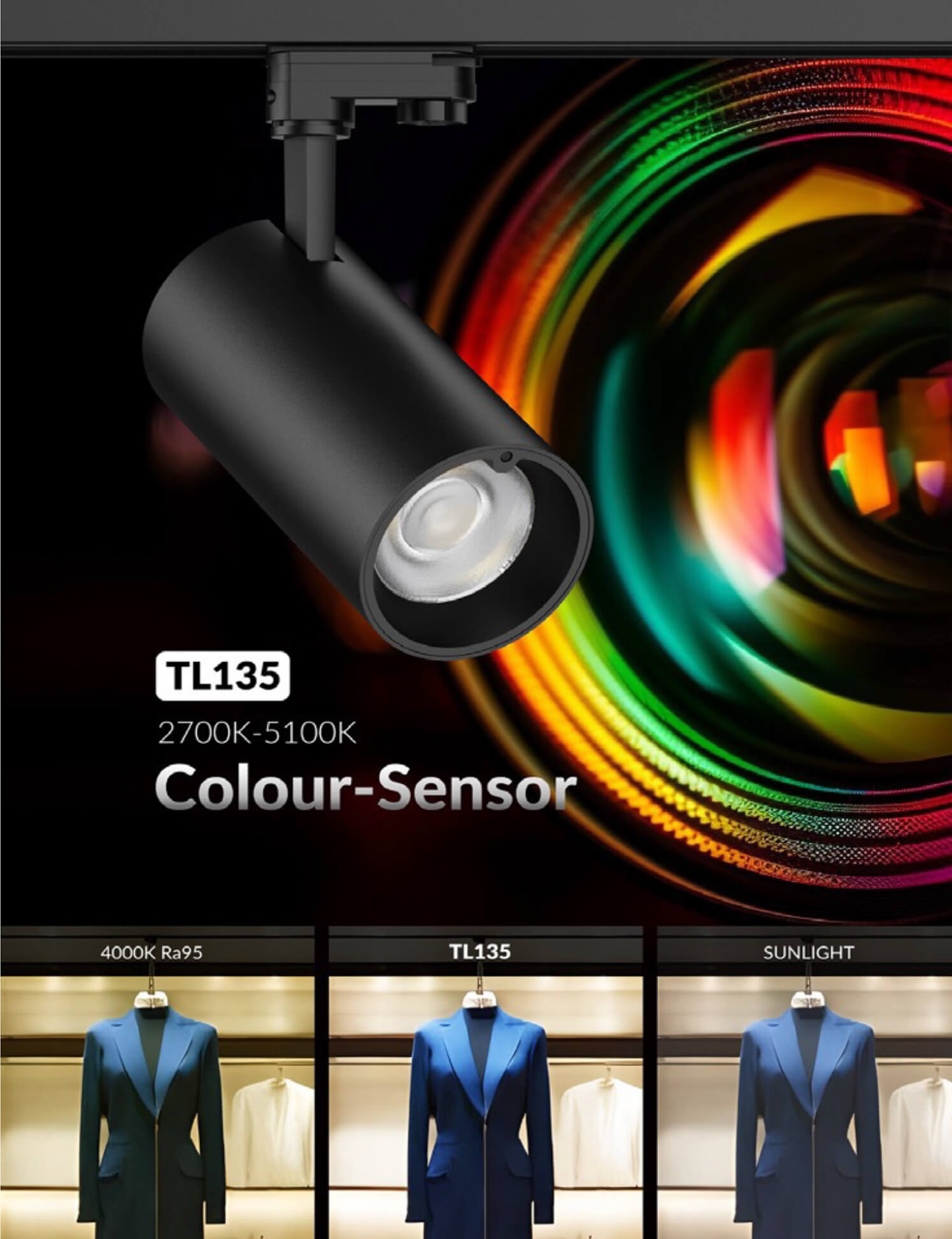

NLC-TL135 track light, intelligent induction color change design. It can automatically adjust the color temperature according to the environmental color change, changing the color according to the need to achieve a variety of decorative effects. Very suitable for home, office, exhibition, display etc
- BodyMaterial for Housing, Aluminum, Optics Material, PC (Polycarbonate)
- LED SourcesLight source options; COB LEDs. CRI: 90| CCT: 3000K, 4000K, Other CRI and CCToptions
- DriversSupplied with non-dimmable integrated driver. Dimming Options TRIAC. 220-240V50/60Hz,
- FinishPowder coat in black or white color, Other colors to be optional
Item Options
| Index | Item Code | Watt | Size(mm) | Lumen(±5%) | Net Weight(KG) | Beam Option |
|---|---|---|---|---|---|---|
| 1 | NLC-TI135-33W | 30W | ⍉100x294 | 1,800lm | 1.24KG | 38 |

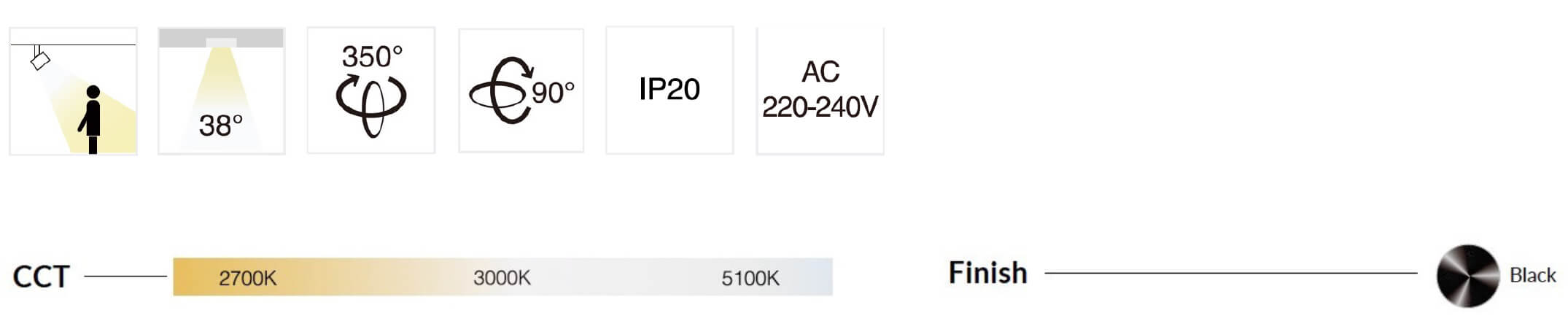

Key Data & Compliance Marks
