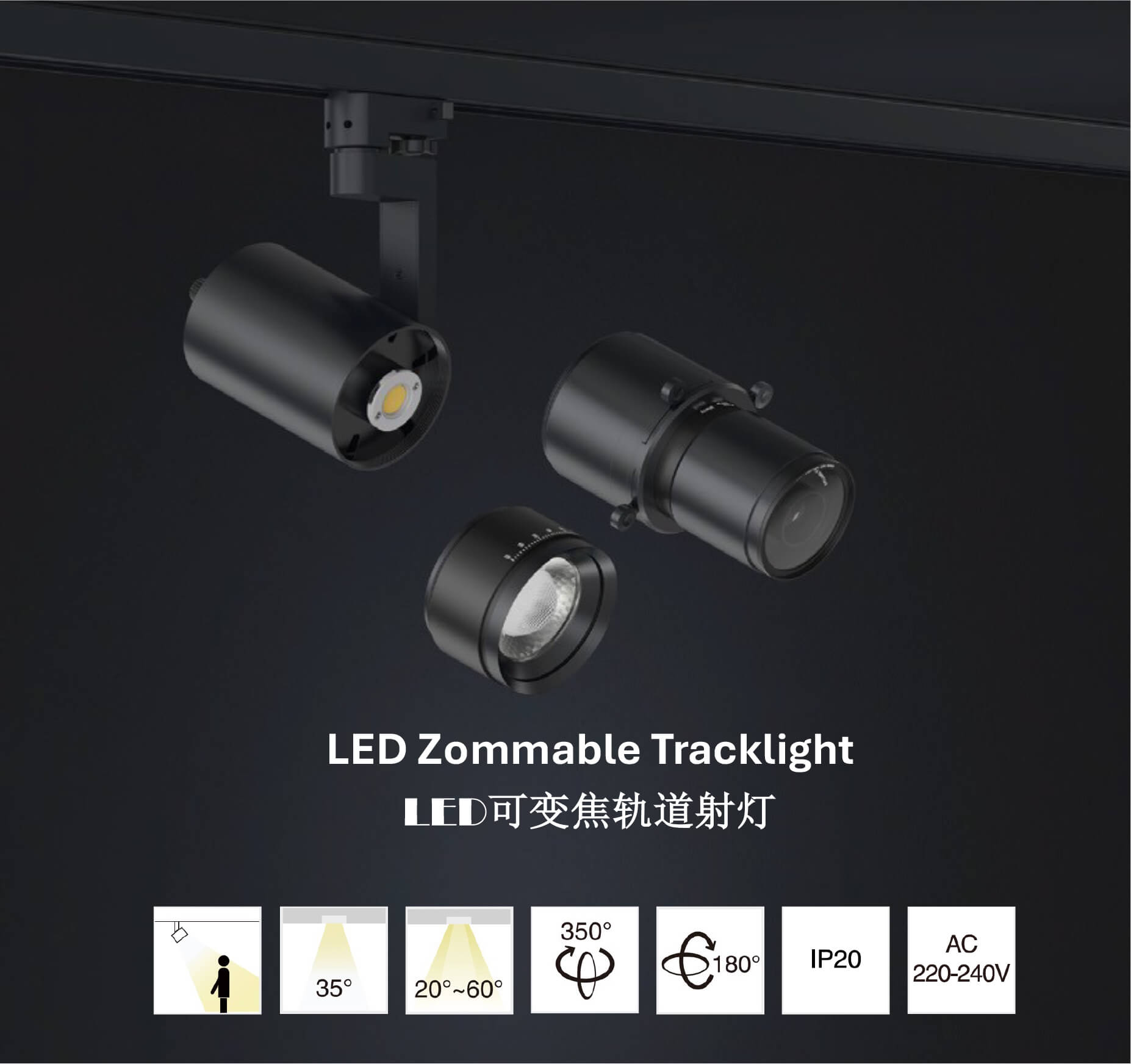

NLC-TL120 is a track spotlight with versatility and a high degree of flexibility in terms of combination, adopts high CRI COB light source. It can be horizontally rotated up to 350 degrees and vertically tilted up to 180 degrees, allowing for versatile lighting angles and directions, CCT Interchangeable is available. TL120A is dry damping design, TL120B adopt stepless zooming technology.
- BodySupplied with non-dimmable integrated driver. Dimming OptionsTRIAC. 220-240V50/60Hz.
- LED SourcesLight source options: SMD LEDs. CRI: 90| CCT: 3000K, 4000K. Other CRI and CCToptions
- DriversSupplied with non-dimmable integrated driver. Dimming OptionsTRIAC. 220-240V50/60Hz.
- Beam Spread Zoomable from 20 to 60 degrees,
- AC220-240V 50/60HZ Voltage Input,
- Dimming, ON/OFF in default, and others like DALI, 0-10V, TRIAC available,
- Materials, Aluminum Casted Bodyand PMMA+PC as optical parts,
- Physically adjustable 355 degrees rotatable, and 180 degrees tilt,

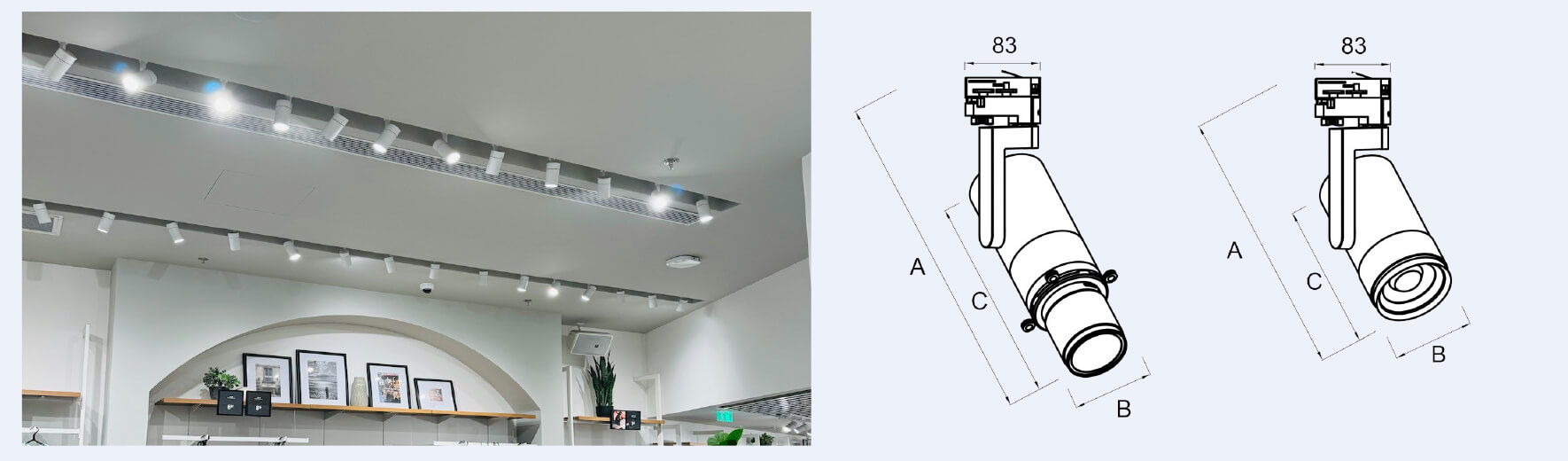

| Index | Item Code | Watt | Size(mm) | Lumen(±5%) | Net Weight(KG) | Beam Option |
|---|---|---|---|---|---|---|
| 1 | NLC-TL120A-32W-P2/D | 32W | 360x88.9x267 | 3,250lm | 1.86KG | 35°/20-60° |
| 2 | NLC-TL120B-32W-P2/D | 32W | 263x92x170 | 3,250lm | 1.19KG | 35°/20-60° |
1
NLC-TL120A-32W-P2/D
32W
360x88.9x267
3,250lm
1.86KG
35°/20-60°
2
NLC-TL120B-32W-P2/D
32W
263x92x170
3,250lm
1.19KG
35°/20-60°
